Basic Info.
Model NO.
16-63mm
Type
Straight
Material
Copper
Connection
Crimping
Transport Package
in Carton Boxes
Specification
16, 20, 25, 26, 32, 40, 50, 63
Trademark
Mingshi / blank / OEM
Origin
China
HS Code
74122090
Production Capacity
1000 Tons/ Year
Product Description

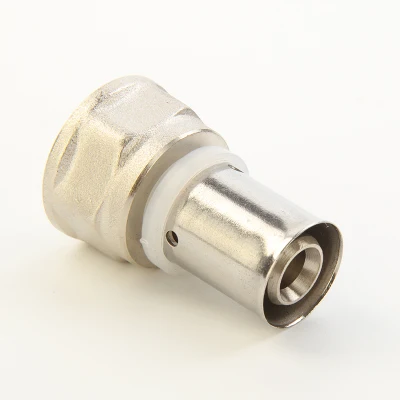

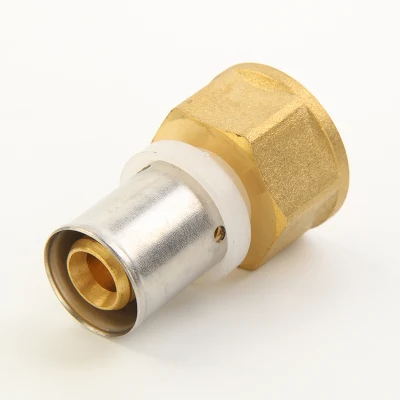

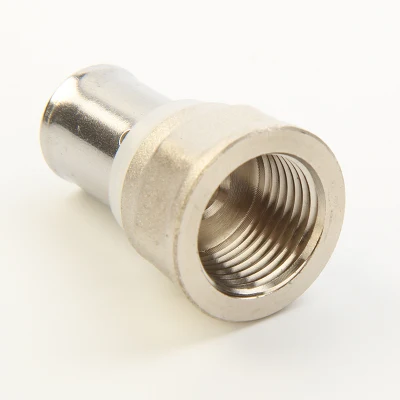

Press fittings in brass for Multilayer Pipes (M-1)
Size: 16mm, 18mm, 20mm, 25mm, 26mm, 32mm, 40mm, 50mm, 63mm
Material: hpb58-2, CW617, hpb59-1, DZR
With/without nickle plated
U/TH profile, REMS's U-TYPE jaws are acceptted
For water(cold & hot)/gas pipe system
QC: Including spot inspection on production lines, all the tests required by each standard done in our lab rooms
Lead time: Normally 15-30days
Advantages:
1) Light weight,convenient to transport and handle
2) High strength
3) less resistance
4) sound insulation
5) No pipe furring
6) Easy to install
7) Colors:silver, other custon-made colors available
8) OEM/ODM welcome
9) Healthy and non-toxic,bacterial neutral,conforming to drinking water stndards
10) Resistant to high temperature(110)with good impact strength(over 500Mpa)
11) Good heat preservation
12) Smooth inner walls reduce pressure loss and increase folw speed
13) Forged brass body
14) Chorme or brass plated fitting
15) Type:tee,elbow ,couple.
16) Excellent Leak-Free Sealing System in heavy vibration, high thermal stresses and high impulse
17) Connect with pex-al-pex pipe ,pex pipe
Size: 16mm, 18mm, 20mm, 25mm, 26mm, 32mm, 40mm, 50mm, 63mm
Material: hpb58-2, CW617, hpb59-1, DZR
With/without nickle plated
U/TH profile, REMS's U-TYPE jaws are acceptted
| Size | 16mm, 20mm, 26mm, 32mm |
| Comprises of | Brass body of fittings, S. S sleeve, nylon parts and 2 EPDM rubber seal ring |
| Material | Brass, DZR, HPb59-1, HPb58-2, etc. |
| Surface treatment | Nickel-plated |
| Max temperature | 95 degrees |
| Working pressure | Above 10 bar |
| processing | use the brass bars, make the hot forging, machining and CNC processing, assembly, Pressure test and packing, etc, all in our factory, so we can provide our customers with the best quality, competetive prices and prompt delivery. |
QC: Including spot inspection on production lines, all the tests required by each standard done in our lab rooms
Lead time: Normally 15-30days
Advantages:
1) Light weight,convenient to transport and handle
2) High strength
3) less resistance
4) sound insulation
5) No pipe furring
6) Easy to install
7) Colors:silver, other custon-made colors available
8) OEM/ODM welcome
9) Healthy and non-toxic,bacterial neutral,conforming to drinking water stndards
10) Resistant to high temperature(110)with good impact strength(over 500Mpa)
11) Good heat preservation
12) Smooth inner walls reduce pressure loss and increase folw speed
13) Forged brass body
14) Chorme or brass plated fitting
15) Type:tee,elbow ,couple.
16) Excellent Leak-Free Sealing System in heavy vibration, high thermal stresses and high impulse
17) Connect with pex-al-pex pipe ,pex pipe
