Basic Info.
Model NO.
DN15-DN100
Head Code
Round
Certification
GB, SGS
Color
Silver
Payment
T/T 30% Deposit
Working Pressure
1.6MPa
Application
Pipe Lines Connect/Water Treatment
Surface Treatment
Polish or Pickling
Transport Package
Carton
Specification
DN15-DN100
Trademark
DaoSucceed/OEM
Origin
China
HS Code
7307290000
Production Capacity
50000 T/Year
Product Description
| Nominal Diameter (DN) | Outer Diameter (mm) |
| 15(1.6Mpa-4 holes) | 16/15.9 |
| 20(1.6Mpa-4 holes) | 20/22.2 |
| 25(1.6Mpa-4 holes) | 25.4/28.6 |
| 32(1.6Mpa-4 holes) | 32/34 |
| 40(1.6Mpa-4 holes) | 40/42.7 |
| 50(1.6Mpa-4 holes) | 50.8/48.6 |
| 65(1.6Mpa-4 holes) | 63.5 |
| 65(1.6Mpa-4 holes) | 76.1 |
| 80(1.6Mpa-8 holes) | 88.9 |
| 100(1.6Mpa-8 holes) | 101.6/108 |
| 15(2.5Mpa-4 holes) | 16/15.9 |
| 20(2.5Mpa-4 holes) | 20/22.2 |
| 25(2.5Mpa-4 holes) | 25.4/28.6 |
| 32(2.5Mpa-4 holes) | 32/34 |
| 40(2.5Mpa-4 holes) | 40/42.7 |
| 50(2.5Mpa-4 holes) | 50.8/48.6 |
| 65(2.5Mpa-4 holes) | 63.5 |
| 65(2.5Mpa-4 holes) | 76.1 |
| 80(2.5Mpa-8 holes) | 88.9 |
| 100(2.5Mpa-8 holes) | 101.6/108 |

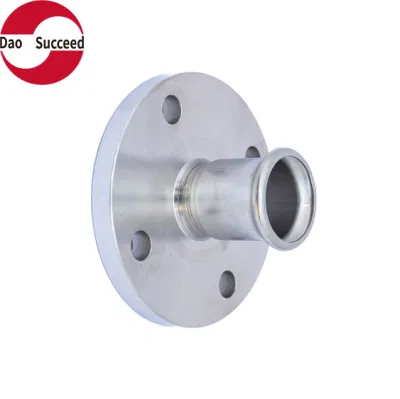

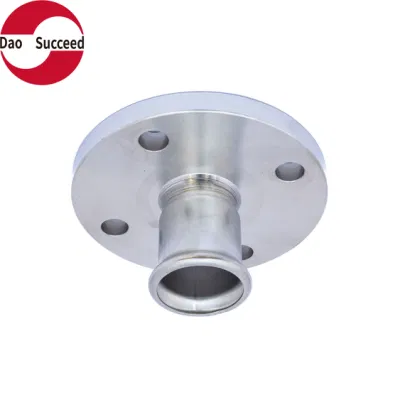

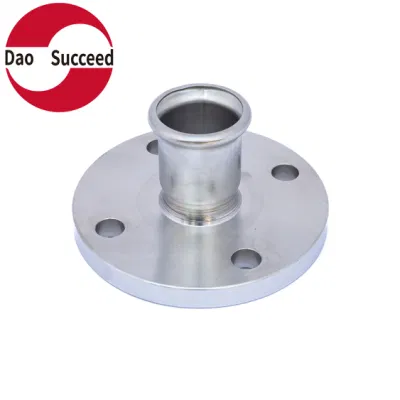

| Flange Adapter Stainless steel M profile press fittings | |
| Material | 304/L, 316/L |
| Working Pressure | 1.6MPa/2.5MPa |
| Certification | ISO, SGS |
| Standard | GB, EN,JIS |
| Seal Ring | EPDM black, FKM green, HNBR yellow(High temperature) |
| Samples | Free |
| Type | M Profile |
Q: Are you trading company or manufacturer ?
A: We are a manufacturer.
Q: Why should you buy from us not from other suppliers?
A: With over 16 years of experience, DaoSucceed stainless steel pipes and fittings are produced with top-grade raw materials from branded suppliers, and each pipe or fitting must 100% pass the hydraulic pressure and airproof test to ensure the excellent quality.
Q: What can you buy from us?
A: Thin walled stainless steel water pipes and stainless steel pipe fittings:press fittings,grooved fittings, socket-weld fittings.
Q: How long is your delivery time?
A: Generally it is 7 working days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to your purchasing quantity.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: What services can we provide?
A: Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
