Product Description

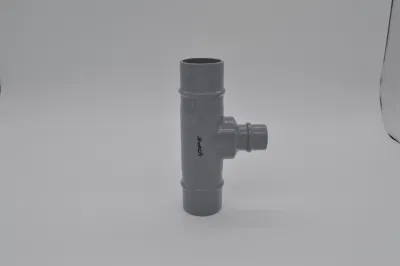

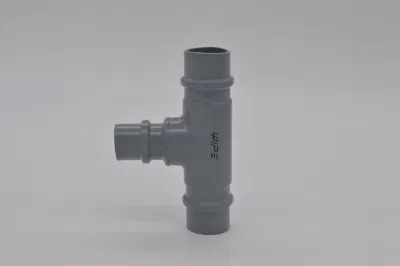

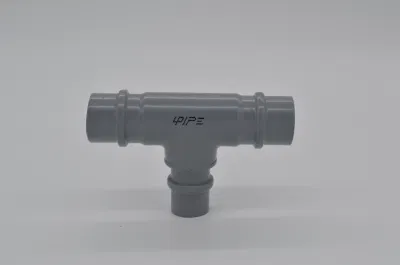

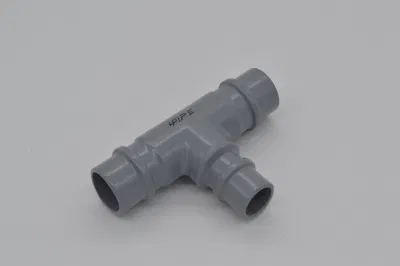

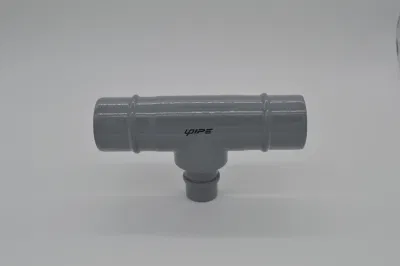

Aluminum Alloy Compressed Air Pipe Reducer Tee
The role and use of the aluminum alloy compressed air pipe reducer tee from Suzhou Jieyou Fluid Technology Co., Ltd. is vital in a compressed air system. This tee serves various purposes:
- Allows for easy connection of pipes with different diameters, ensuring a smooth transition and maintaining system coherence.
- Enables the distribution of compressed air into two different pipelines, making it useful for delivering air to multiple equipment or locations simultaneously.
- Compact design saves space and allows for flexible installation, adapting to compact equipment or system layouts.
- Highly resistant to corrosion, ensuring durability and corrosion resistance even in harsh environmental conditions.
Choose the aluminum alloy compressed air pipe reducer tee for efficient and reliable compressed air system performance.
 | S.N | Nominal diameter(mm) | W(mm) | H(mm) |
| 21 0501 01 | DN25-DN20(Assembly) | 156 | 105 | |
| 21 0501 00 | DN25-DN20 | 102 | 66 | |
| 42 0501 00 | DN40-DN25 | 135 | 105 | |
| 54 0501 00 | DN50-DN40 | 160 | 107 | |
| 64 0501 00 | DN65-DN40 | 160 | 138 | |
| 65 0501 00 | DN65-DN50 | 210 | 136 | |
| 74 0501 00 | DN80-DN40 | 160 | 154 | |
| 75 0501 00 | DN80-DN50 | 160 | 154 | |
| 76 0501 00 | DN80-DN65 | 230 | 161 | |
| 84 0501 00 | DN100-DN40 | 160 | 173 | |
| 86 0501 00 | DN100-DN65 | 215 | 182 | |
| 87 0501 00 | DN100-DN80 | 250 | 180 | |
| 96 0501 00 | DN125-DN65 | 210 | 203 | |
| 97 0501 00 | DN125-DN80 | 230 | 203 | |
| 98 0501 00 | DN125-DN100 | 274 | 203 | |
| C6 0501 00 | DN148-DN65 | 240 | 232 | |
| C7 0501 00 | DN148-DN80 | 260 | 232 | |
| C8 0501 00 | DN148-DN100 | 280 | 232 | |
| C9 0501 00 | DN148-DN125 | 300 | 232 | |
| B4 0501 00 | DN200-DN40 | 160 | 280 | |
| B5 0501 00 | DN200-DN50 | 160 | 280 | |
| B6 0501 00 | DN200-DN65 | 220 | 293 | |
| B7 0501 00 | DN200-DN80 | 235 | 293 | |
| B8 0501 00 | DN200-DN100 | 250 | 293 | |
| B9 0501 00 | DN200-DN125 | 280 | 293 | |
| BA 0501 00 | DN200-DN148 | 330 | 296 |
| 1. Complete Reliability | Removable and reusable components, perfect for your factory environment Fast installation of shunt device and branch pipeline, convenient adjustment of production line Rich interfaces and accessories, suitable for any system All components are nonflammable |
| 2. Better Corrosion Resistance than 304 Stainless Steel | Anti-corrosion Internal Surface Treatment of Aluminum Alloy Pipe Alkali and acid corrosion resistance Internal surface always clean, no pressure loss of the pipe network system |
| 3. Easy Operation | Pipelines and connectors can be installed immediately without additional treatment -- no pre construction preparation is required Fast assembly, no welding, gluing or stranding required - time saving Easy assembley- no need for training Light weight, easy for cutting pipes -- easier to work on site Directly use -- the system can be tested and used immediately |
| 4. Energy Saving | Consistently high quality interior surfaces - clean air Low friction of inner surface -- high flow performance Precise pipe diameter - optimized sealing Automatic filling type large contact surface sealing system ,no leakage |
| 5. Excellent Resistance against the Following Environments | Corrosion Mechanical vibration Thermal variations U.V Compressor oil |
| 6. Durable, Beauty | Electrostatic spraying when leaving the factory Standard color, beautiful appearance |
Suzhou Jieyou Fluid Technology Co., Ltd. offers Electrostatic Spraying Stainless Steel/Aluminum/Copper/Plastic Fast Connection Reducing Tee Pipe Fittings. These reducing tees are designed for efficient and sustainable fluid transportation systems. With a ten-year quality guarantee, they are the perfect choice for your plumbing needs.
Suzhou Jieyou Fluid Technology Co., Ltd.
Suzhou Jieyou Fluid Technology Co., Ltd. is a manufacturing company specializing in aluminum pipe, pipe fitting, and industrial aluminum profile. We are dedicated to research and development, production, sales, and installation.
Located in the economic and technological development zone of Zhangjiagang, Jiangsu, our company covers a floor space of 200 mu and has made a total investment of 180 million yuan. With our state-of-the-art facilities, including 5 aluminum alloy tube extrusion production lines, 3 deep processing production lines for finished products, and 2 production lines for industrial aluminum profile, we have an annual production capacity of 3,000 tons of aluminum alloy pipe and 8,000 tons of industrial aluminum profile.
At Suzhou Jieyou Fluid Technology Co., Ltd., we pride ourselves on being a large-scale aluminum alloy manufacturer with first-class technical equipment. Our production and inspection equipment, including mold center, inspection center, R&D, and other equipment, are imported from Germany, South Korea, and Japan.
Suzhou Jieyou Fluid Technology Co., Ltd.
The company specializes in the innovation and deep processing of non-ferrous materials. We are proud to introduce our range of high-quality pipes and pipe fittings that cater to the diverse needs of customers worldwide.
- High Intensity Aluminum Alloy Pipe: Our high-intensity aluminum alloy pipe is designed to withstand extreme conditions while maintaining its structural integrity. It offers superior strength and durability, making it ideal for various applications.
- Stainless-Steel Pipe: Our stainless-steel pipe is crafted with precision and attention to detail. It is corrosion-resistant and can withstand high temperatures, making it perfect for use in industries where hygiene and durability are paramount.
- Copper-Aluminum Composite Pipe: Our copper-aluminum composite pipe combines the best properties of both materials. It offers excellent heat transfer capabilities and is highly resistant to corrosion, making it an ideal choice for heating and cooling systems.
- Aluminum Pipe with Internal Thread: Our aluminum pipe with internal thread is designed for easy installation and secure connections. It is lightweight, yet strong, making it suitable for a wide range of applications.
- High-Frequency Welding of Aluminum Alloy Collector Pipe and Pipe Fittings: Our high-frequency welding technology ensures seamless and reliable connections for aluminum alloy collector pipes and pipe fittings. It guarantees excellent performance and longevity.
With our commitment to innovation and customer satisfaction, we strive to provide more diversified and superior products to meet the demands of customers worldwide. Choose Suzhou Jieyou Fluid Technology Co., Ltd. for all your non-ferrous material needs.
Suzhou Jieyou Fluid Technology Co., Ltd.
With a commitment to sustained innovation in design, Suzhou Jieyou Fluid Technology Co., Ltd. (JIEU) continuously strives to improve the reliability and durability of our products. Through complete innovation, strict working condition design, and rigorous quality control, we ensure the production of high-quality products that provide powerful technical support for every project while minimizing your costs.
At JIEU, we offer the perfect total solution for fluid transportation, allowing you to achieve the optimal return on investment and safeguard the efficient productivity of your operations. Our products are designed to meet the highest standards, ensuring their reliability and durability in various applications.
UPIPE Series - Ten-year Quality Guarantee
Suzhou Jieyou Fluid Technology Co., Ltd. is proud to offer a ten-year quality guarantee on our UPIPE series product. We are committed to providing exceptional products that meet the highest standards of quality and durability.
Quality Problem Coverage
Within ten years from the installation and acceptance of the UPIPE series product, our company will replace or repair the product free of charge in case of any quality problems.
Exclusion Clause
The following reasons are not covered by our quality guarantee:
- The product or component is out of the warranty period, except for products with extended quality assurance service.
- The product has not been installed according to our stipulations or has exceeded the applicable scope specified by our company. The product must be operated according to our company's manual and the requirements of pertinent installation and maintenance documents. Additionally, it should not be used in a working environment that is against our stipulations. Any damage caused by improper installation, storage, or operation, such as exposure to extreme temperatures, corrosive environments, or external forces, is not covered.
- The breakdown or damage caused by unauthorized installation, repair, modification, or dismounting performed by our company's after-sales personnel or the designated service agent, except for the third-party after-sales service agency entrusted by the company.
At Suzhou Jieyou Fluid Technology Co., Ltd., we stand behind the quality of our UPIPE series product. Our ten-year quality guarantee ensures that you can trust in the reliability and longevity of our product.
