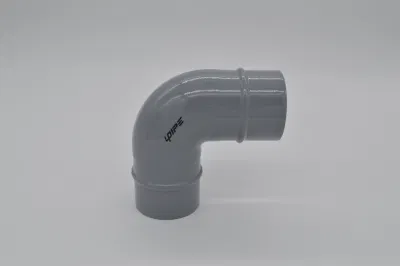

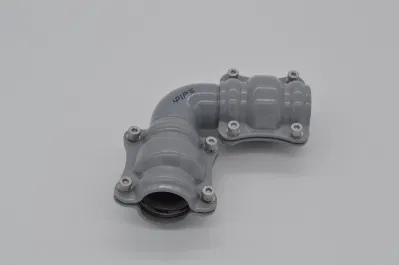

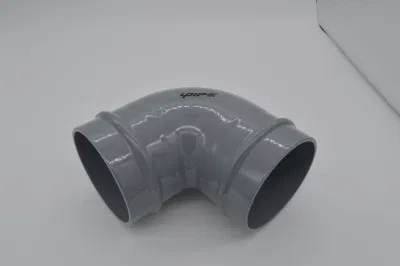

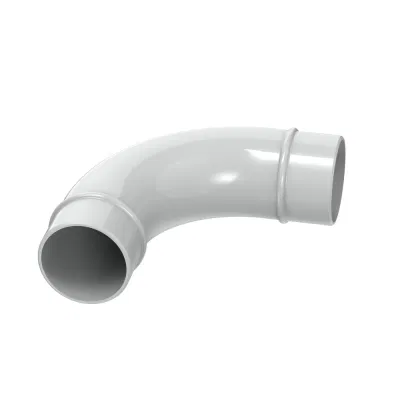

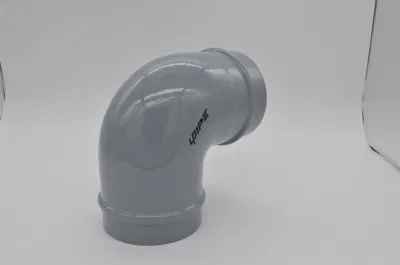

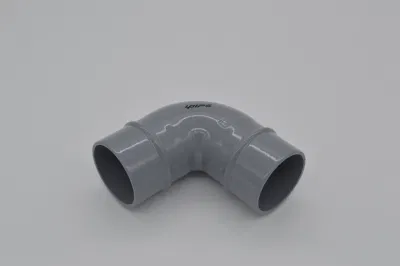

Smooth Inner Surface Efficiency Air Fluid Pipe Transportation 90 Degree Elbow

Introducing our Smooth Inner Surface Efficiency Air Fluid Pipe Transportation 90 Degree Elbow. We are a factory specializing in producing high-quality pipe transportation solutions.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Product Category & Application
  • Company Profile
  • Our Customers
  • Exhibition
  • Certifications
  • After Sales Service
Overview

Basic Info.

Model NO.
90 Degree Elbow
Material
Alloy
Technics
Pushing
Certification
ASME, ANSI, DIN, JIS, BS, GB
Color
Grey
Product Name
90 Degree Pipe Fitting Elbow
Transmission Medium
Compressed Air, Vacuum, Inert Gas, More Contact Us
Vacuum Degree
98.8%
Working Pressure
13bar(-40~+80ºC), 16bar(-20~+60ºC)
Working Temperature
-40ºC~ +80ºC
Material Features
Spraying Aluminum,Ss,Copper,Engineering Plastic
Customization
Available
Colors
Multi-Color Available for Your Choice
Transport Package
Standard Export Carton Packing
Specification
DN20-200 Optional
Trademark
Upipe or OEM
Origin
China
HS Code
7608201090
Production Capacity
1000000m/Year

Product Description

Product Description

Compressed air piping elbow plays an important role in the piping system and has a variety of roles and uses.
First, it can change the flow direction of the pipeline, so that the air in the pipeline to produce bending, so as to adapt to the use of different occasions. Secondly, the compressed air piping elbow can effectively slow down the air flow rate and reduce the pressure inside the pipeline to ensure the safe operation of the pipeline. This is especially important for high-speed air flow, which can prevent the pipeline from being damaged or having accidents due to excessive pressure.
In addition, the compressed air piping elbow can also adjust the cross-sectional area of the pipeline, control the flow and pressure of the fluid, and achieve the regulation and stabilization of the flow rate.
Finally, it can also protect the equipment from solid particles hitting the inner wall of the pipeline, thus prolonging the service life of the equipment. Overall, compressed air piping elbow has an important function in the piping system, which can ensure the safe operation of the pipeline and the normal work of the equipment.

Product Parameters

90 Degree Elbow
Smooth Inner Surface Efficiency Air Fluid Pipe Transportation 90 Degree Elbow S.N Nominal diameter(mm) W(mm) H(mm)
11 0300 01 DN20(Assembly) 99 75
22 0300 01 DN25(Assembly) 105 78
11 0300 00 DN20 60.2 48
22 0300 00 DN25 65.7 51
44 0300 00 DN40 96.9 75
55 0300 00 DN50 106.9 80
66 0300 00 DN65 142.6 105
77 0300 00 DN80 161.2 115
88 0300 00 DN100 179.7 125
99 0300 00 DN125 201.3 133
CC 0300 00 DN148 237.9 160
BB 0300 00 DN200 296.3 187
*The same size EQUAL PIPE TO PIPE shall be equipped for product code ends with XXXXXX00.

1. Complete Reliability Removable and reusable components, perfect for your factory environment
Fast installation of shunt device and branch pipeline, convenient adjustment of production line
Rich interfaces and accessories, suitable for any system
All components are nonflammable
2. Better Corrosion Resistance than 304 Stainless Steel Anti-corrosion Internal Surface Treatment of Aluminum Alloy Pipe
Alkali and acid corrosion resistance
Internal surface always clean, no pressure loss of the pipe network system
3. Easy Operation Pipelines and connectors can be installed immediately without additional treatment -- no pre construction preparation is required
Fast assembly, no welding, gluing or stranding required - time saving
Easy assembley- no need for training
Light weight, easy for cutting pipes -- easier to work on site
Directly use -- the system can be tested and used immediately
4. Energy Saving Consistently high quality interior surfaces - clean air
Low friction of inner surface -- high flow performance
Precise pipe diameter - optimized sealing
Automatic filling type large contact surface sealing system ,no leakage
5. Excellent Resistance against the Following Environments Corrosion
Mechanical vibration
Thermal variations
U.V
Compressor oil
6. Durable, Beauty Electrostatic spraying when leaving the factory
Standard color, beautiful appearance

Smooth Inner Surface Efficiency Air Fluid Pipe Transportation 90 Degree Elbow
