Basic Info.
Model NO.
SSC
Material
Stainless Steel
Color
Blue, White, Yellow, Red, Orange
Size
4 to 16mm
Thread
M5 to 1/2"
Shape
T, L, V, E, Y, W
Transport Package
PP Bag
Specification
50PCS
Trademark
SMARTSOLU
Origin
China
HS Code
39174000
Production Capacity
10, 000, 000
Product Description
Product Description
1 One-Touch push-to-connect configuration allows an instant tubing connection
2 Smooth-Edge release sleeve design facilitates a quick tubing disconnection
3 Aesthetically pleasing nickel-plated metallic optional feature ensures anti-
corrosion and anti-containation properties of an extended product life
4 Pre-applied sealant on all external threads eliminates the additional sealing
requirement
5 Internal and/of external flat-to-flat hexagonal configurations for both metric and
inch specifications allow a proper tightening or directional orientation upon
installation by using L key or allen wrench for the applicable model types
| Model(φD) | |||||||
| Tube(matric) | |||||||
| SSC04-M5 | SSC06-03 | SSC10-03 | SSC14-04 | ||||
| SSC04-M6 | SSC06-04 | SSC10-04 | SSC16-02 | ||||
| SSC04-01 | SSC08-01 | SSC12-01 | SSC16-03 | ||||
| SSC04-02 | SSC08-02 | SSC12-02 | SSC16-04 | ||||
| SSC06-M5 | SSC08-03 | SSC12-03 | |||||
| SSC06-M6 | SSC08-04 | SSC12-04 | |||||
| SSC06-01 | SSC10-01 | SSC14-02 | |||||
| SSC06-02 | SSC10-02 | SSC14-03 | |||||
Typical Application:
Air brake systems except where temperatures exceed +200°F tubing.
Or where battery acid can drip on
Operating pressure range:
(0 psi to 217.5 psi) (0 MPA to 1.5MPA)
Proof Pressure:
Maximum operating pressure of 261 psi
Vibration:
fair resistance
Operating Temperature Range:
(64°F to 284°F)(-20ºC to 140ºC)
Fluid temperature:
(23°F to 302°F)(-5ºC to 150ºC)
Application tubing:
Metric size ,Inch size
Connection thread:
M,R,RC,UNF,NPT
Material:
316 stainless steel
Advantages:
Easy to assemble (no TUBE preparation of flaring required.)built in TUBE support
This matric can ensures Anti-Corrosion and acid resistant ,also can be used in high temperature.
Grease-free/Can be used with steam
Certified to meet current
Food Sanitation Law standards .
(component materials have met apparatuses and container-packages standards)

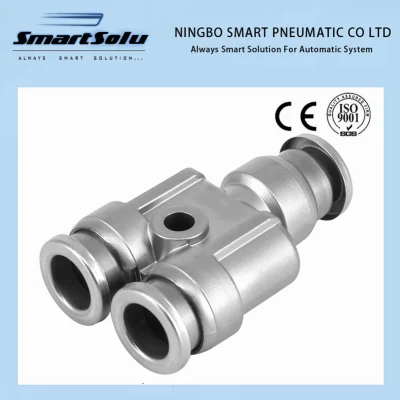

- Stainless steel 316 one-touch fittings, inch size
- Seal parts: FKM
- Can be used with steam
- Grease-free
- Applicable tubing material includes FEP, PFA, nylon, soft nylon, polyurethane, polyolefin
(component materials have met apparatuses and container-packages standards)
Why choose us?
(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.
(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.
(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.
(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.
Company frofile
Our company is specialized in manufactuing all kinds of valves,hydro-pneumatic components,alumium parts and plastic parts.Our main products are including pneumatic cylinder,solenoid valve,air filter,air regulator,air lubricator,pneumatic fitting,hydraulic fitting,tubes etc.as below;
*ISO Standard Cylinder:DNC/SI(ISO6431&6432)
*Standard Cylinder:SC/SU,
*Mini Cylinder:MAL,MA,,MI,CJ2B,CDM2B
*Compact Cylinder:SDA,CQ2
*Cylinder:CU,TN,STM,MGP
*Solenoid Valve:3v1,3v,4v,4M,3A,4A ,drain valve etc
*Air Source Treatment Unit:A,HA,HNA,T,A/B,etc
*pneumatic accessories:fitting,hand valve,muffler,tube,pressure switch
*Pneumatic Vibrator:GT,K,R,SK,FP,NTP etc.
NINGBO HI-TECH SMART MACHINERY CO LTD was established in 2013, is a high tech company specialized in pneumatic components and microduct accessories manufacturing. After years' hard working, it has owned 2 factories now, and the products include pneumatic vibrators, air cylinders, solenoid valves, air treatment units, pneumatic fittings&mufflers, microduct connectors and other accessories. We have sold our goods to more than 60 countries, and that number is still increasing.
Our Services & Strength
1. We have more than 10 years experience on pneumatic products;2. Excellent quality control has always been the goal of our practice;
3. You can purchase most of the pneumatic products here;
4. Sample orders and orders with a small number of products are acceptable;
5. OEM, ODM is ok for us. Not only the label and packaging, but also the personalized customization of the product itself;
6. Any requirements, just feel free to let us know.
