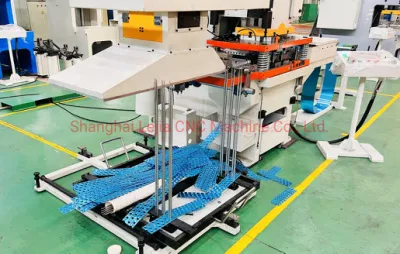

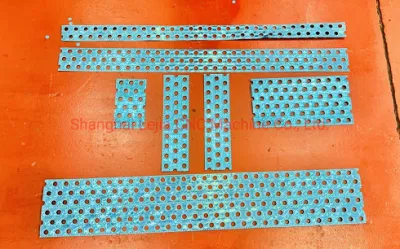

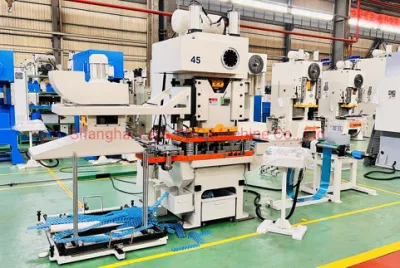

Jl 21-45b Hydraulic Cold Stamping Press (with numerical control) for The Manufacture of Lamellae of Copper Aluminum Heat Exchangers.

JL 21-45b Hydraulic Cold Stamping Press for manufacturing copper aluminum heat exchanger lamellae. We are a leading factory with advanced equipment.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Main structure and features
  • Specifications
  • Related Products
  • LEJIA Customers
Overview

Basic Info.

Model NO.
Model -JL 21-45B
Power Source
Mechanical Drive
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Frame Struction
C-Frame Type
Stroke
Adjustable
Slide
Eight-Side Long Rectangle Guides of Slide
Clutch-Brake
Pneumatic Dry Combination Clutch-Brake
Hydraulic Overload Protection Device
Automatic Grease Lubrication System
Control
PLC
Transport Package
Standard Export Package
Specification
all the models in the table
Trademark
SLJS
Origin
China
HS Code
8462629090
Production Capacity
30000sets/Year

Product Description

Main structure and features

Outline Size Diagram


Parameters of Outline Size

Model

JL21-16

JL21-25A

JL21-45A

JL21-63A

JL21-80A

JL21-100A

JL21-125

JL21-160A

JL21-200

JL21-250

Anchor bolt size A1×B1

660×710

710×795

820×925

920×1100

970×1100

1050×1180

1080×1380

1150×1310

1300×1670

1360×1900

Installation size A2×B2

780×910

890×1015

970×1160

1080×1380

1130×1380

1180×1580

1210×1780

1350×1710

1500×2170

1500×2400

Biggest Size A3×B3

920×1410

1020×1515

1090×1660

1190×1880

1240×1880

1290×2080

1320×2280

1460×2210

1675×2670

1675×2900

Operating table height H1

760

790

795

850

850

850

875

900

950

950

Body height H2

1820

2040

2220

2510

2510

2670

2735

3120

3430

3740

Total Height H3

2200

2450

2600

2950

2950

3080

3150

3550

3980

4300

  Jl 21-45b Hydraulic Cold Stamping Press (with numerical control) for The Manufacture of Lamellae of Copper Aluminum Heat Exchangers.
Jl 21-45b Hydraulic Cold Stamping Press (with numerical control) for The Manufacture of Lamellae of Copper Aluminum Heat Exchangers.
Jl 21-45b Hydraulic Cold Stamping Press (with numerical control) for The Manufacture of Lamellae of Copper Aluminum Heat Exchangers.


Model parameters

JL21-16

JL21-25A

JL21-45A

JL21-63A

JL21-80A

JL21-100A

JL21-125

JL21-160A

JL21-200

JL21-250

ΦA

110

110

110

125

125

125

140

160

180

180

B

120

120

140

170

170

260

260

270

300

300

ΦD

30

40

50

50

50

60

60

70

70

70

E

200

200

250

250

250

360

360

360

450

400

F

-

-

-

-

-

-

-

-

300

300

T-slot

I

II

II

III

III

III

III

IV

IV

IV



Specifications

Items
Technical Data
Model

JL21-16

JL21-25A

JL21-45A

JL21-63A

JL21-80A

JL21-100A

JL21-125

JL21-160A

JL21-200

JL21-250

JL21-315

JL21-400

Nominal Pressure

KN

160

250

450

630

800

1000

1250

1600

2000

2500

3150

4000

Nominal Pressure

KN

3

3

4

4

4

5

5

6

7

8

8

8

Nominal Pressure Stroke

mm

8.3~80

10.5~100

11.5~110

12.5~120

12.5~120

15~140

18.6~150

16.5~160

18.7~180

23~220

250

250

Stroke of Slide

mm

85~140

70~120

60~100

50~80

50~80

45~65

42~60

35~55

30~50

30~45

25~40

25~35

Stroke

S.P.M

220

250

290

300

300

360

400

460

480

500

550

550

Max.Die Set Height

mm

50

50

70

80

80

90

90

100

110

120

120

120

Depth of Throat

mm

170

185

235

260

260

320

320

330

410

410

480

480

Distance Between Uprights

mm

360

440

510

570

570

570

600

690

820

820

1050

1050

Bottom Size of Slide

L-R

mm

400

460

500

600

600

700

700

790

900

950

1300

1300

F-B

mm

240

270

300

350

350

400

400

460

570

620

720

720

Hole for Punch Shank

Diameter

mm

Φ30

Φ40

Φ50

Φ50

Φ50

Φ60

Φ60

Φ70

Φ70

Φ70

Φ70

Φ70

Depth

mm

50

60

60

60

60

80

80

80

80

100

100

100

Size of Table

L-R

mm

600

700

800

850

900

1000

1100

1200

1350

1400

1700

1850

F-B

mm

320

350

450

500

500

630

630

650

800

800

940

940

Thickness

mm

60

70

80

90

90

125

150

180

200

200

200

200

Size of Opening in Table

Diameter

mm

Φ110

Φ110

Φ110

Φ125

Φ125

Φ125

Φ140

Φ160

Φ180

Φ180

Φ250

Φ250

Single Speed Motor Power

KW

2.2

3

5.5

7.5

7.5

11

15

15

22

30

30

37
