GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948

Get high-quality GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948 at our factory. Shop now for durable products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Related Products
  • LITONE Service
  • Company Profile
  • Application
  • FAQ
Overview

Basic Info.

Model NO.
1000 948
Coating
Powder Coating
Substrate
Iron
Certification
CE
Condition
New
Machine Type
Manual Powder Gun, Painting Equipment, Coating Equ
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of Core Components
1 Year
Core Components
Cascade, Powder Coating Gun
Place of Origin
Shandong, China
Voltage
110/220V
Power
40
Dimension(L*W*H)
Standard
Key Selling Points
Long Service Life
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Home
Showroom Location
Turkey, United States, France, Viet Nam, Saudi Ara
Size
Standard Size
Usage
Powder Coating Workpieces
Transport Package
Carton
Specification
Standard
Trademark
Litone
Origin
China
HS Code
8424200000
Production Capacity
500

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg

Product Description

GM Powder Coating Machine Spray Gun OptiSelect Gun GM02 Manual Gun Threaded sleeve complete 1000 948

Product Description

1. BRIEF INTRODUCTION


GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948
GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948
GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948


OptiSelect GM02 uses special anti-static materials to make gun shell and gun nut, in order to protect the high voltage from running away, output voltage of cascade is 85~95 kV and output stability.
GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948
GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948
Electrode holder material is PTFE with thermostability and not-sticky powder, it containing vitreous glaze, service life and conductive effect are better than carbon.
GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948
GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948
OptiSelect GM02 Cascade
The cascade casing is made of G gun casing material, which is of high quality.
The production process is different, and it is directly potted in a vacuum environment, so there will be no air bubbles.


GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948
GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948

2. TECHNICAL PARAMETER

  Electrical data
  Nominal input voltage   10 V eff.
  Nominal output voltage   98 kV
  Polarity   negative (option: positive)
  Max. output current   100 μA
  Cascade   12 stages
  Ignition protection   Type A acc. EN 50177
Detailed Photos

GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948

Related Products
GM Powder Coating Machine Spray Gun Optiselect Gun GM02 Manual Gun Threaded Sleeve Complete 1000 948

A
OptiSelect manual powder gun - complete
negative polarity, incl. gun cable - 6 m, rinsing air hose - 6 m, flat jet nozzle, brush and parts kit, without powder hose
1002 100
  OptiSelect manual powder gun - complete
positive polarity, incl. gun cable - 6 m, rinsing air hose - 6 m, flat jet nozzle, brush and parts kit, without powder hose
1002 101
B OptiSelect manual powder gun shaft (incl. cascade)
  Negative polarity (-) 1001 891
  Positive polarity (+) 1001 892
C Cascade (negative polarity) - complete 1000 809
  Cascade (positive polarity) - complete 1002 031
1 Gun body 1001 155
  Handle - complete set (pos. 5, 6, 7 and 8) 1000 807
2 Trigger - complete (incl. pos. 2 and 3) 1001 341
3 Compression spring - 0.36x4.2x49.4 mm 1001 487
4 Trigger cover 1000 801
5 Grasp termination 1000 806
6 Radial gasket 1000 803
7 Gun cable - L=6 m, complete 1001 528
  Extension cable for gun cable - L=6m, incl. safety clamp 1002 161
  Extension cable for gun cable - L=14m, incl. safety clamp 1002 162
  Safety clamp for extension cable 1002 064
8 Grub screw - M3x8 mm 1000 844
10 Powder tube - complete 1001 339
10.2 O-ring - Ø 12x1.5 mm 1000 822
11 Rinsing air connection 1000 804
12 Clip ring 1000 898
13 Compression spring 1001 488
14 Back cover - complete 1000 617
14.1 Printed circuit board holder - complete (incl. pos. 14.2) 1002 029
14.2 Radial gasket 1000 795
14.3 Shield - complete 1002 028
14.4 Cap screw - M3x8 mm (not shown) 202 363
15 Hose connection - complete, for internal hose Ø 11-12 mm 1001 340
  Hose connection - complete, for internal hose Ø 9-10 mm 1002 030
15.2 O-ring - Ø 12x1.5 mm 1000 822
16 Hook (replaceable) 1000 877
17 Countersunk head screw - M4x8 mm, plastic 263 516
18 PT-screw 1000 843

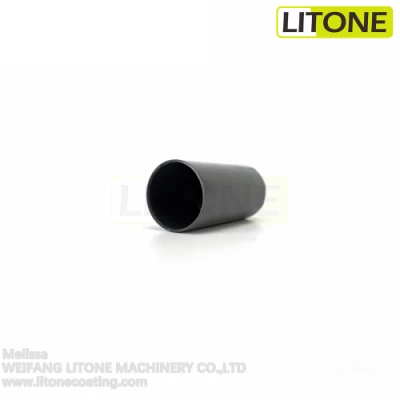

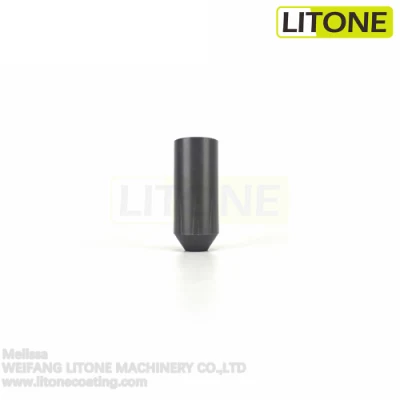

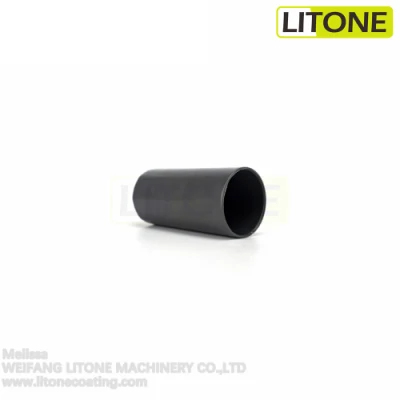

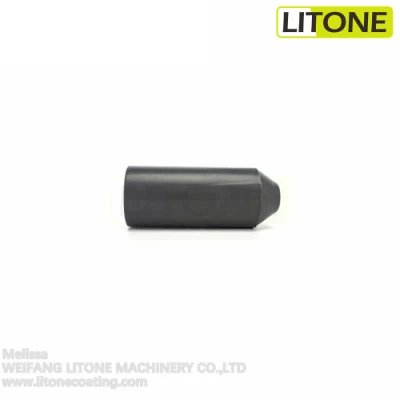

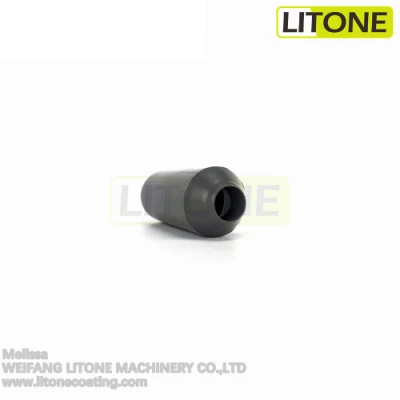

19 Threaded sleeve - complete 1000 948
20 Flat jet nozzle - complete 1000 047
20.1 Electrode holder - complete 1000 055
20.2 Flat jet nozzle 1000 049
  OptiSelect adaptor for PGC control unit (not shown) 1001 952
  Cleaning brush - Ø 12mm 389 765
  Parts set (not shown), consisting of: 1002 359
  Round jet nozzle - NS02, complete 382 922
  Cable clamp 303 070
  Deflector plate - Ø 16 mm 331 341
  Deflector plate - Ø 24 mm 331 333
  Deflector plate - Ø 32 mm 331 325
  Hose connection - complete, for internal hose Ø 11-12 mm 1001 340
  O-ring - Ø 12x1.5 mm 1000 822
  Countersunk head screw - M4x8 mm, plastic 263 516
  Powder hose - Ø 10 mm (not shown) 1001 673
  Powder hose - Ø 11 mm (not shown) 105 139
