Basic Info.
Model NO.
1611
Classification
Connector
Drum Brakes Classification
Connector
Main Market
South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market
Business Type
Manufacturer
Trasnportation
Sea,Air
Surface
Natural Color
MOQ
100 PCS
Transport Package
CTN and Pallet
Specification
1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4
Trademark
OEM
Origin
Zhejiang Ningbo
HS Code
7412209000
Production Capacity
3, 000, 000 Pieces/Year
Product Description

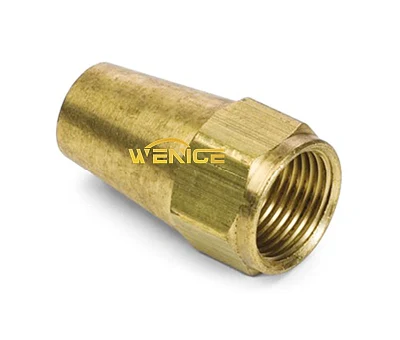

Long Flare Nut Compression Fittings 1611
This long flare nut compression tube fitting is made of brass, connects to a flared tube or fitting, and is suitable for use with fuel and gas systems. It is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. This fitting connects to a flared tube or fitting and can be used with copper, brass, aluminum, or steel tubing. It is part of an assembly that resists mechanical pullout for a more secure connection and can be assembled and reassembled without affecting the seal. This long flare nut compression tube fitting has an operating temperature range of -65 to +250 degrees F and is suitable for use with fuel and gas systems, plumbing, refrigeration, and vacuum applications.
LONG FLARE NUT COMPRESSION FITTINGS 61 DETAILS
Typical Application:
Use with copper,aluminum and thermoplastic tub-ing.Not recommended
for steel tubing .Manufactured for low and medium pressure tubing
connection work where excessive vibration or tube movement is not
involved.Not recommended for application using gas eous media
Conformance:
Meets specifications and standards of ASA, ASME asn SAE
Reference Part No:
161 - 261 - S61L - 1611
| PART# | TUBE SIZE | C | D | L |
| 1611-3 | 3/16 | 7/16 | .192 | .62 |
| 1611-4 | 1/4 | 1/2 | .255 | .75 |
| 1611-5 | 5/16 | 9/16 | .318 | .84 |
| 1611-6 | 3/8 | 5/8 | .382 | .88 |
| 1611-8 | 1/2 | 13/16 | .507 | 1.06 |
| 1611-10 | 5/8 | 15/16 | .632 | 1.08 |
| 1611-12 | 3/4 | 1-3/16 | .758 | 1.38 |
