Battery Powered Pressing Tool for Stainless Steel, Copper, Pex Crimping Tool

Get the job done with our battery-powered pressing tool for stainless steel, copper, and PEX. As a factory, we offer a reliable crimping tool for all your needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
BZ-1550
Rated Working Pressure
52MPa
Crimp/Charge
350times(DN20 Stainless Steel Pipe)
Piston Stroke
40mm
Clamping Cycle
3-8s
Transport Package
Carton/Pallet
Trademark
lgeelee
Origin
China
Production Capacity
2000PCS/Month

Product Description

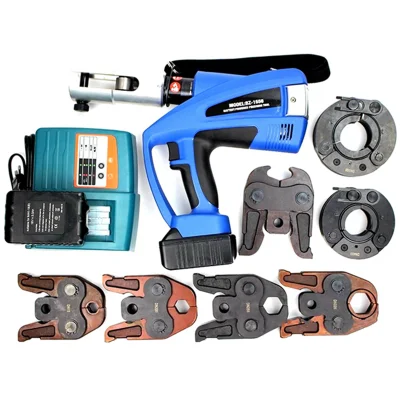

BZ-1550 Battery Powered Pressing Tool for Stainless steel pipe

Rated clamping force

32KN

Stroke

40mm

Crimp/charge

350 times

clamping cycle

3-8s

Battery voltage

18V,3.0Ah Li-ion

Battery capacity

3.0 Ah

Charging time

2hours

Package

 case

Accessories



Battery

2pcs

Charger

1pc

Sealing ring of cylinder

1set

Sealing ring safety valve

1set

Product Description

Battery Pex Crimping Tools EZ-1550 for 50Mpa Rated working pressure can work on -10ºC~40ºC Working temperature, 32KN rated crimping force, Piston stroke: 40mm

Characteristics And Advantages:

Full automatic clamping process, return the piston into its starting position when the max pressure reached.
Suspend and release device ensure accurate reliability and good sealing.

The hydraulic safety valve and electronic pressure sensor double overload protection device can be in any
need to terminate the work, avoid hazardously.

Straight insert rotary lock type clamp head pin, prevent clamp head pin not lock to work.
180 rotary clamp head, perfectly used in narrow working space.

The large capacity of Li-ion battery and strong motor provide powerful performance and durability.

LED and sound alarm function, let your work more secure when the malfunction happened.

Built-in temperature sensor, prevent the damage from the long work.
