Basic Info.
Model NO.
H142X
Type
Hydraulic Self Control
Pressure Rating
Pn4, Pn10, Pn16 (0.4MPa, 1MPa, 1.6MPa)
Transport Package
Bubble Plastic Paper + Plywood Case
Specification
DN50 ~ DN800
Trademark
KARFAR
Origin
China
HS Code
84812000
Production Capacity
5000PCS/Month
Product Description

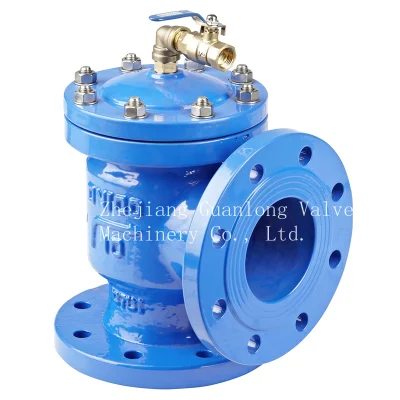

Angle Type Piston Actuated Hydraulic Level Control Valve
MODEL NO. H142X
Δ The KARFAR model H142X Hydraulic Level Control Valve is popularly used in automatic water supply system of all kinds of water tanks, reservoirs and water towers in mining industries, factories and urban infrastructure building. It also can work as control valve for recycling water supply system of boilers with normal pressure.
It controls reservoir filling to maintain constant water level.

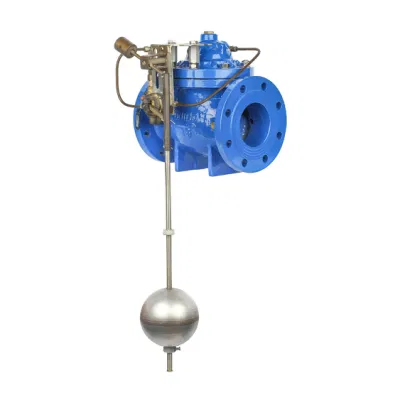

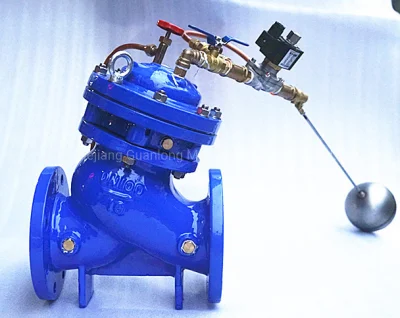

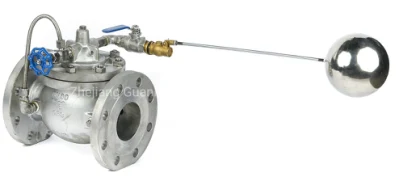

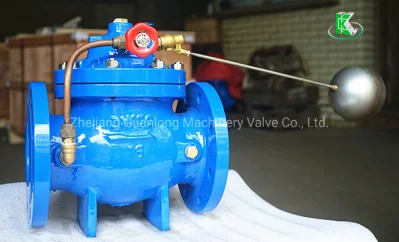

When water level in the reservoir declines, the top float ball valve will discharge water from upper chamber. Then high pressure of inlet pipeline pushes the piston upwards which leads to water supply process.
When water level in the reservoir rises, the top float ball valve closes and the piston move downwards which shuts off the valve and stops water supply.
MODEL NO. H142X
Δ The KARFAR model H142X Hydraulic Level Control Valve is popularly used in automatic water supply system of all kinds of water tanks, reservoirs and water towers in mining industries, factories and urban infrastructure building. It also can work as control valve for recycling water supply system of boilers with normal pressure.
It controls reservoir filling to maintain constant water level.
When water level in the reservoir declines, the top float ball valve will discharge water from upper chamber. Then high pressure of inlet pipeline pushes the piston upwards which leads to water supply process.
When water level in the reservoir rises, the top float ball valve closes and the piston move downwards which shuts off the valve and stops water supply.
PART NAME | Material |
Body& Bonnet | Tin bronze, stainless steel, Cast iron, Dutil Iron, Cast steel etc |
Trim | Tin bronze, stainless steel, Cast iron, Dutil Iron, Cast steel etc |
Normal Pressure (Mpa) | Shell test Pressure (Mpa) | Sealing test Pressure (Mpa) | Working temperature | Applicable Medium |
0.4 | 0.6 | 0.44 | ≤80ºC | Water etc |
1.0 | 1.5 | 1.1 | ||
1.6 | 2.4 | 1.76 |
![Angle Type Piston Actuated Float Ball Altitude Water Level Control Valve (H142X)](http://img6.grofrom.com/www.bafeivalveco.com/226f3j00apRTjZSyYUoL/Angle-Type-Piston-Actuated-Float-Ball-Altitude-Water-Level-Control-Valve-H142X-.webp)
![Angle Type Piston Actuated Float Ball Altitude Water Level Control Valve (H142X)](http://img6.grofrom.com/www.bafeivalveco.com/226f3j00aRntsDCMJUqp/Angle-Type-Piston-Actuated-Float-Ball-Altitude-Water-Level-Control-Valve-H142X-.webp)
![Angle Type Piston Actuated Float Ball Altitude Water Level Control Valve (H142X)](http://img6.grofrom.com/www.bafeivalveco.com/226f3j00ibMkBpyJGHoO/Angle-Type-Piston-Actuated-Float-Ball-Altitude-Water-Level-Control-Valve-H142X-.webp)
![Angle Type Piston Actuated Float Ball Altitude Water Level Control Valve (H142X)](http://img6.grofrom.com/www.bafeivalveco.com/226f3j00TpGtZNjIsfqP/Angle-Type-Piston-Actuated-Float-Ball-Altitude-Water-Level-Control-Valve-H142X-.webp)
![Angle Type Piston Actuated Float Ball Altitude Water Level Control Valve (H142X)](http://img6.grofrom.com/www.bafeivalveco.com/226f3j00NbFcgmKSGrqP/Angle-Type-Piston-Actuated-Float-Ball-Altitude-Water-Level-Control-Valve-H142X-.webp)
